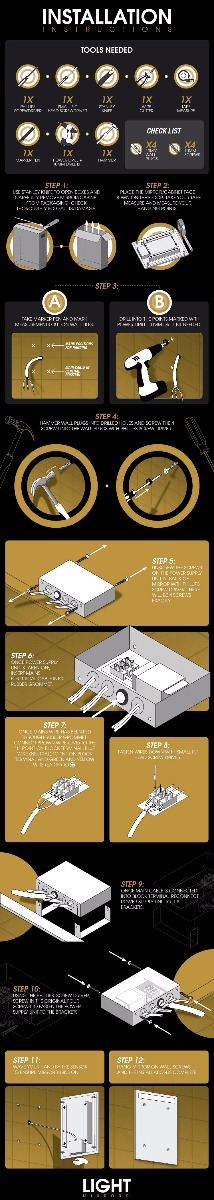

How to install an LED Illuminated Mirror

Easy Installation

• 1. Carefully remove your mirror/cabinet from packaging.
• 2. Place the mirror/cabinet face down on the floor to measure for your hanging points.
• 3. Mark the hanging measurements out on wall surface and drill with a 10mm drill bit.
• 4. Hammer wall plugs into drill holes and screw-in the supplied screws.
• 5. Unscrew the four screws from the power supply unit.
• 6. Once power unit is taken off, insert mains cable into rubber grommet.
• 7. When fed through the grommet, connect electrical wiring.
• 8. Fasten wires down with a flat head screw driver.
• 9. Once main cable is connected, reconnect power supply unit to its brackets.
• 10. Screw in original four screws to fasten power supply unit in place.
• 11. Wave your hand by the sensor to ensure mirror lights turn on.
• 12. Hang mirror on wall screws to complete your installation.
